SKKT 106/16 E
Thyristor Module, Series Connected, 106 A, 1.6 kV

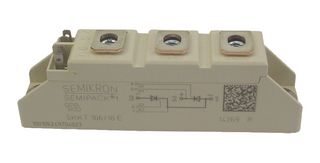

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SEMIKRON |
|---|---|
| Manufacturer Part No | SKKT 106/16 ECopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 2423659 |
| Product Range | SEMIPACK Series |
| Also Known As | 230B1662, 07897501 |
| Your Part Number | |
| Technical Datasheet |
33 In Stock
144 more incoming. You can reserve stock now
33 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.5,084.080 |
| 5+ | Rs.4,584.670 |
| 10+ | Rs.4,126.510 |
| 50+ | Rs.3,970.070 |
| 100+ | Rs.3,905.870 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.5,084.08
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SEMIKRON |
|---|---|
| Manufacturer Part No | SKKT 106/16 ECopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 2423659 |
| Product Range | SEMIPACK Series |
| Also Known As | 230B1662, 07897501 |
| Technical Datasheet | |
| SCR Module Type | Series Connected - SCRs |
| Peak Repetitive Off State Voltage | 1.6kV |
| Gate Trigger Current Max | 150mA |
| Average Forward Current | 106A |
| On State RMS Current | 180A |
| Gate Trigger Voltage Max | 3V |
| Operating Temperature Max | 130°C |
| Repetitive Peak Reverse Voltage | 1.6kV |
| Thyristor Case Style | Module |
| No. of Pins | 7Pins |
| Thyristor Mounting | Panel |
| Product Range | SEMIPACK Series |
| SVHC | To Be Advised |
Product Overview
SKKT 106/16 E is a SKKT 106 series SEMIPACK®1 thyristor / diode module. Typical application includes DC motor control (e.g for machine tools), AC motor soft starters, temperature control (e.g for ovens, chemical, processes), professional light dimming (studios, theatres).
- Heat transfer through aluminium oxide ceramic isolated metal baseplate
- Hard soldered joints for high reliability
- UL recognition, file no. E 63 532
- 1600V VRRM/VDRM, 180A ITRMS/106A ITAV (sin.180, TC = 85°C)
- 1.6kV peak repetitive off state voltage, 150mA max gate trigger current
- 106A average forward current, 180A on state RMS current
- 3V max gate trigger voltage
- Operating temperature range from -40 to 130°C
Technical Specifications
| SCR Module Type | Series Connected - SCRs |
|---|---|
| Gate Trigger Current Max | 150mA |
| On State RMS Current | 180A |
| Operating Temperature Max | 130°C |
| Thyristor Case Style | Module |
| Thyristor Mounting | Panel |
| SVHC | To Be Advised |
| Peak Repetitive Off State Voltage | 1.6kV |
|---|---|
| Average Forward Current | 106A |
| Gate Trigger Voltage Max | 3V |
| Repetitive Peak Reverse Voltage | 1.6kV |
| No. of Pins | 7Pins |
| Product Range | SEMIPACK Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Slovak Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85413010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .094574 |
