83896

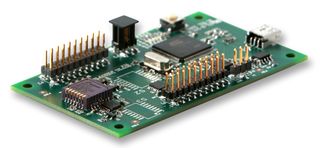

83896 is a SAR150-100 EVP gyro sensors evaluation platform that provides rapid measurement and evaluation access to SAR150 gyro sensors. The SAR150 gyro contains a ButterflyGyro MEMS die and a BiCMOS mixed mode ASIC, housed in a rigid custom ceramic LCC package to accommodate both horizontal and vertical mounting. The sensor is factory calibrated and compensated for temperature effects to provide high accuracy digital output over a broad temperature range. An SPI interface of the device enables easy and effective communication to the application.

• SAR150 angular rate sensor has a standard input range of 100°/s
• Horizontal and vertical mounting
• High reliability and robustness over long lifetime
• Low vibration sensitivity
• High overload and shock capability
• Closed loop force feedback operation with electrostatic frequency tuning
• Low bias drift
• Ideal mono crystalline Si material
• Wafer level sealing with controlled Q factor
• Low power

Applications

Sensing & Instrumentation, Industrial, Aerospace, Defence, Military

Contents

EVP PCB exclusive gyro sensor, PC software, USB cable, User manual.
