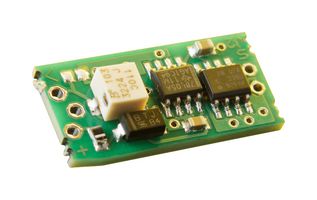

VOLTCON_MED
Signal Converter, 5 µA to 0V / 5V, Current, Voltage, 1 Channels, 24 V
| Manufacturer | SGLUX |
|---|---|
| Manufacturer Part No | VOLTCON_MEDCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4128263 |
| Product Range | VOLTCON Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.9,310.160 |
| 5+ | Rs.9,279.080 |
| 10+ | Rs.9,248.000 |
| 50+ | Rs.9,063.040 |
Product Information
| Manufacturer | SGLUX |
|---|---|
| Manufacturer Part No | VOLTCON_MEDCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4128263 |
| Product Range | VOLTCON Series |
| Technical Datasheet | |
| Signal Conditioner Input | Current |
| Signal Conditioner Output | Voltage |
| No. of Output Channels | 1Channels |
| Accuracy % | - |
| Output Accuracy | - |
| Supply Voltage | 24V |
| No. of Channels | 1 Channel |
| Signal Conditioner Mounting | - |
| Isolation Input | - |
| Product Range | VOLTCON Series |
| SVHC | No SVHC (25-Jun-2020) |
Product Overview
VOLTCON_MED is a VOLTCON series transmitter of photocurrent to 0 - 5V signal. The VOLTCON converts a photocurrent into an output voltage between 0 and 5V and can be connected to any PLC system. The amplification factor (gain) can be adjusted by a potentiometer. The measurement range can also be customized by replacing passive components. It works with other diodes if shunt resistance and junction capacitance are comparable with sglux SiC photodiodes. Almost all UV and visible photodiodes are known to work while infrared detectors may not work as expected.
- Photocurrent measurement range from 5µA (VOLTCON-high), ± 35% gain adjustment range
- <lt/> 1mV dark output voltage, <lt/> 30mA current consumption
- 1Mohm Rf, 10pF Cf
- Operating temperature range from -20 to +80°C
- Dimension (W x L x H) is 13 x 26 x 8mm
Notes
We strongly recommend to process this product on ESD protected workplaces.
Technical Specifications
| Signal Conditioner Input | Current |
|---|---|
| No. of Output Channels | 1Channels |
| Output Accuracy | - |
| No. of Channels | 1 Channel |
| Isolation Input | - |
| SVHC | No SVHC (25-Jun-2020) |
| Signal Conditioner Output | Voltage |
|---|---|
| Accuracy % | - |
| Supply Voltage | 24V |
| Signal Conditioner Mounting | - |
| Product Range | VOLTCON Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (25-Jun-2020) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .03 |
