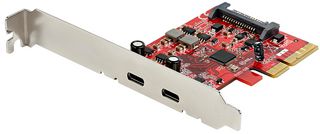

PEXUSB312C3

PEXUSB312C3 is a 2-port PCIe USB 3.1 card. This PCIe USB 3.1 card installs into an available PCI-Express slot in your computer and enables users to upgrade their current system by adding two USB-C (10Gbps) ports. Also known as USB 3.2 Gen 2x1, this USB 3.1 Gen 2 card adds two 10Gbps USB Type-C ports to your computer. Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.1 Gen 2. With higher data throughput support, this USB 3.1 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.1 Gen 2 peripherals and includes an optional SATA power connector for high-power devices. The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. The 2-port PCI E adapter card works with newer USB-C devices but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. The USB 3.1 card is compatible with Windows, Linux, and macOS operating systems.

• USB 3.2 Gen 2 PCI Express host controller card supports multiple INs maintaining max bandwidth
• Expansion adapter card w/ 2x USB Type-C ports 10Gbps per port
• USB-C PCIe Card w/ UASP optimizes USB performance
• SATA power provides 5V 3A (15W) /USB-C port
• Install dual port USB-C add-on card in full/low-profile PCIe 3.0 x4 slot (works w/PCI-e 2.0)
• This card's USB-C port does not support DP Alt-Mode (video), Power Delivery, or Thunderbolt

Notes

Note: USB-C ports are data only, and do not support DP Alt Mode or USB Power Delivery. Available bandwidth is shared between both ports. Maximum throughput is limited by the bus interface; if used with PCI-Ex Gen 2.0 PC, the max is 5 Gb/s. If used with PCI-Ex Gen 3.0 PCthe max is 10Gb/s.
