                      1. Home
                      2. Development Boards, Evaluation Tools
                      3. Lighting & LED Development Kits
                      Print Page

                      EVL80WLED-STCH03

                      EVAL BOARD, LIGHTING, LED DRIVER

                      STMICROELECTRONICS EVL80WLED-STCH03

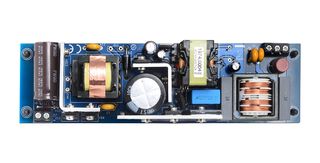

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoEVL80WLED-STCH03
                      Order Code3387309
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      2 In Stock

                      Need more?

                      2 Delivery in 4-6 Business Days(UK stock)
                      QuantityPrice
                      1+Rs.14,288.000
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      Rs.14,288.00
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoEVL80WLED-STCH03
                      Order Code3387309
                      Technical Datasheet

                      Data Sheet

                      Device Topology-
                      No. of Outputs1Outputs
                      Output Current50mA
                      Output Voltage-
                      Input Voltage Min90VAC
                      Input Voltage Max265VAC
                      Core ChipSTCH03
                      Dimming Control Type-
                      Kit ContentsEval Board STCH03
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      80W-1A primary side current loop control LED driver with STCH03 is a demonstration board for street lighting applications with a primary current sensing control loop. The LED driver is a fixed current source with a very fast start-up time, protections to short-circuit and to open load. The board is optimized to supply an LED string load in the range from 40V to 80V with a fixed 1A current source with a very low current ripple. Due to current primary side STCH03 control loop, the output stage is composed of a simple diode rectification and the output capacitor. Form factor is compatible with street lighting application. At full load the efficiency is above the 90% at nominal voltages and remains very close to this value till half the load. Output short-circuit and no-load protections are auto-restart for a safe operation in lighting environment. Low input power is there at no-load conditions.

                      • Input voltage (Vin) range from 90Vrms to 265Vrms, input frequency range from 45Hz to 66Hz
                      • LED string range fro 40V to 80V / 1A, output current ripple is <lt/> 50mA
                      • Fast start-up is <lt/>300ms, high power factor, low THD (<lt/>5%)
                      • No-load power is <lt/> 0.5W at 230Vin
                      • Average full load efficiency is <gt/>90%
                      • Short circuit protection with auto-restart
                      • LED string open with auto-restart
                      • According to EN61000-3-2 class-C or JEITA-MITI class-C
                      • EMI according to EN55022 class B conducted emissions
                      • Safety according to EN60065C

                      Technical Specifications

                      Device Topology

                      -

                      Output Current

                      50mA

                      Input Voltage Min

                      90VAC

                      Core Chip

                      STCH03

                      Kit Contents

                      Eval Board STCH03

                      SVHC

                      No SVHC (21-Jan-2025)

                      No. of Outputs

                      1Outputs

                      Output Voltage

                      -

                      Input Voltage Max

                      265VAC

                      Dimming Control Type

                      -

                      Product Range

                      -

                      Technical Docs (2)

                      Product Change Notice EN

                      Technical Data Sheet EN

                      Associated Products

                      1 Product Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Italy
                      Country in which last significant manufacturing process was carried out
                      Tariff No:84733020
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.0001
