SATEL-VL53L4ED

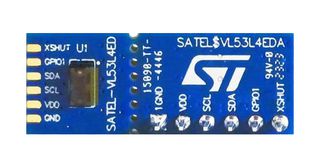

SATEL-VL53L4ED is a breakout board embedding the VL53L4ED Time-of-Flight high-accuracy proximity sensor with extended temperature capability. package includes two breakout boards, which can be easily integrated into the customer's devices. The PCB section that embeds the VL53L4ED module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires. This makes it easier to integrate the SATEL-VL53L4ED breakout boards into the development and evaluation devices thanks to their small size.

• VL53L4ED Time-of-Flight high accuracy proximity sensor with extended temperature capability
• High-performance proximity ranging, independent of the target size and reflectance
• From 0 to 1300mm with full field of view (FoW)
• Effective sensor temperature range of -40°C to 105°C
• Up to 400mm ranging under 100Klux
• Short distance linearity down to 1mm
• Divisible brd that can be used as mini-PCB breakout board, easy to integrate into customer's device
• Compatible with X-NUCLEO-53L4A3

Contents

Two breakout boards.
