STEVAL-ISV021V1

DEMO KIT, ENERGY HARVESTER/BATT CHARGER

STMICROELECTRONICS STEVAL-ISV021V1

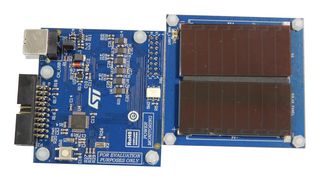

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
STEVAL-ISV021V1
Order Code:
3335861
Technical Datasheet:
STEVAL-ISV021V1   Datasheet
See all Technical Docs

Product Overview

Demonstration kit consisting of a complete energy harvesting module based on the SPV1050 ULP energy harvester and battery charger, having the purpose to show the electrical performance of the power converter and many other fundamental electrical quantities related to the overall system. The power manager is configured as a buckboost converter, fitting the electrical characteristics of the mounted PV panel and battery. A power monitoring board along with a software GUI are used to monitor and to graph both of PV panel and battery voltage and current and system performances like MPPT accuracy and conversion efficiency. The STEVAL-ISV021V1 represents the standalone harvesting module that can be interfaced with a wireless sensor node to provide the microcontroller, transmitter and sensors with the energy scavenged and stored into the battery.
  • SPV1050 based harvesting dongle board
  • PV module soldered on the back
  • Lithium coin cell battery
  • Interface to power monitoring board
  • PV module voltage and battery monitoring
  • Ambient light sensor for irradiance level measurement
  • Supported by SW GUI to show MPPT accuracy and conversion efficiency
  • Li-Ion battery (capacityNOM = 120mAh, VNOMINAL = 3.6V, VCHARGE = 4.2V, VEND-OF-DISCHARGE = 2.75 V)
  • PV module characteristics at 200lux (VOCTYP = 9.8V, ISCTYP = 20µA, VMPTYP = 8V, IMPTYP = 18µA)

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
STMicroelectronics

:
SPV1050

:
Energy Harvester & Battery Charger

:
Buck-Boost Converter

:
Demonstration Kit SPV1050

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Available for back order

Deliveries start from 22/5/21

Notify me when back in stock

Rs.12,588.00

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.12,588.00
