STEVAL-MIC004V1
Evaluation Board, MP23ABS1 MEMS Microphone Coupon Board, 4 x Sensor Daughter Boards
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MIC004V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3009973 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.3,461.340 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.3,461.34
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MIC004V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3009973 |
| Technical Datasheet | |
| Accessory Type | Microphone Coupon Board |
| For Use With | STMicroelectronics MP23ABS1 Analog MEMS Microphones |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

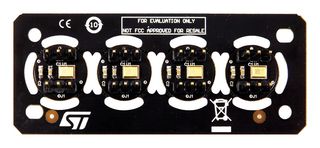

STEVAL-MIC004V1 is a microphone coupon board based on the MP23ABS1 analogue MEMS (daughterboard containing 4 MP23ABS1 analogue MEMS microphones). The coupon concept allows easy performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.
- 4 x MP23ABS1 bottom port analogue MEMS microphones
- Vsupply range from 1.52 to 3.6V
- 130dBSPL acoustic overload point
- Omnidirectional sensitivity
- Current consumption of 120µA
- 64dB of SNR
- Sensitivity of -38dBV ±1dB
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Accessory Type | Microphone Coupon Board |
|---|---|
| Product Range | - |
| For Use With | STMicroelectronics MP23ABS1 Analog MEMS Microphones |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0044 |
