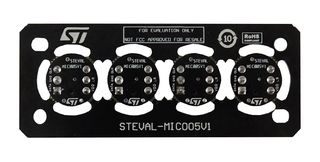

STEVAL-MIC005V1
Microphone Coupon Board, X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MIC005V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3586018 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,978.880 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,978.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MIC005V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3586018 |
| Technical Datasheet | |
| Accessory Type | Microphone Coupon Board |
| For Use With | STMicroelectronics X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
STEVAL-MIC005V1 is a daughterboard containing four MP23DB02MM digital MEMS microphones. It can be used with X-NUCLEO-CCA02M2 and the coupon concept allows easy performance testing of ST MEMS microphones. Single PCBs hosting each microphone can be detached.
- 4 x MP23DB02MM bottom port digital MEMS microphones
- Multi performance mode
- Vsupply from 1.6 to 3.6V
- 122dBSPL acoustic overload point
- PDM single-bit output
- 64dB of SNR in low power mode
- Sensitivity -26dBFs +/-1dB
Technical Specifications
| Accessory Type | Microphone Coupon Board |
|---|---|
| Product Range | - |
| For Use With | STMicroelectronics X-NUCLEO-CCA02M2 Digital MEMS Microphone Expansion Board |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0039 |
