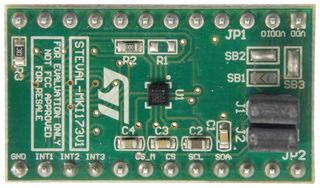

STEVAL-MKI173V1
Adapter Board, MEMS Motion Sensor Evaluation Motherboards, DIL24, STEVAL-MKI109V3
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MKI173V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2675778 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.1,656.630 |
| 5+ | Rs.1,623.500 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-MKI173V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2675778 |
| Technical Datasheet | |
| Accessory Type | Adapter Board |
| For Use With | STEVAL-MKI109V3 MEMS Motion Sensor Eval Motherboards |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
STEVAL-MKI173V1 is a LSM303AH adapter board for standard DIL24 socket. It is designed to facilitate the evaluation of MEMS devices in the LSM303AH product family. The board offers an effective solution for fast system prototyping and device evaluation from directly within the user application. The STEVAL-MKI173V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM303AH pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVALMKI109V3 motherboard with a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
- Complete LSM303AH pinout for a standard DIL24 socket
- Fully compatible with the STEVALMKI109V3 motherboard
Technical Specifications
| Accessory Type | Adapter Board |
|---|---|
| Product Range | - |
| For Use With | STEVAL-MKI109V3 MEMS Motion Sensor Eval Motherboards |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0038 |
