GS040201

Keypad, STORM GRAPHIC Series, 1 x 4, Matrix, Polymer, 50 mA, 24 V

STORM INTERFACE GS040201

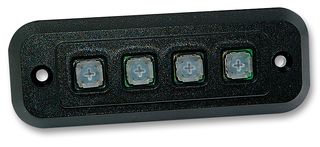

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
GS040201
Order Code:
9810170
Product Range
STORM GRAPHIC Series
Technical Datasheet:
GS040201   Datasheet
See all Technical Docs

Product Range Selector (STORM GRAPHIC Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
STORM GRAPHIC Series

:
1 x 4

:
Matrix

:
Polymer

:
50mA

:
24V

:
4

:
42.5mm

:
118.5mm

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The STORM GRAPHIC series Keypad feature keytop legends that can be configured or customized without dismantling the keypad. The unique 'Snap-on' keytop cover encapsulates a polymer legend tile. The legend tiles can be selected from an extensive library of standard characters or symbols to suit many applications. Alternatively custom keytop graphics can be created using laser printed acetate film or screen printed polymer film. Keytop colours can also be customized by backing the transparent legend film with a second, coloured tile. When pressed into place the impact resistant keytop provides a permanent tamper resistant lens. The keytop cover protects the encapsulated legends from wear, physical damage, water ingress and unauthorized removal. These are ideal for use in a wide range of industrial and commercial applications. Also available with optional integrated LED illumination of keytops and keytop graphics, making these suitable for use in dark or subdued lighting conditions.
  • Rugged, reliable and responsive data entry
  • Available with optional integrated LED illumination of keytops and keytop characters
  • IP54 Protection rating
  • 4,12 and 16 key formats
  • Can be fixed to a flat surface or under panel mounted for a flush, low-profile installation
  • Extensive library of keytop graphics and colour tiles available
  • Custom keytop graphics can be created and fitted 'on-site'

Applications

Industrial
