16282-2SG-318
Circular Connector, 2+PE, Circular Industrial, Micro-Con-X Series, Cable Mount Receptacle

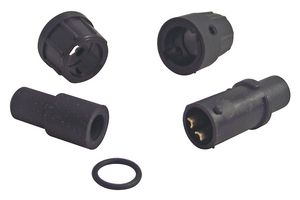

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No16282-2SG-318
Order Code1608471
Product RangeMicro-Con-X Series
Technical Datasheet
108 In Stock
Need more?
108 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.839.070 |
| 10+ | Rs.753.570 |
| 20+ | Rs.715.040 |
| 50+ | Rs.696.250 |
| 100+ | Rs.663.360 |
| 200+ | Rs.616.380 |
| 500+ | Rs.595.710 |
| 1000+ | Rs.565.650 |
| 2000+ | Rs.562.830 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.839.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part No16282-2SG-318
Order Code1608471
Product RangeMicro-Con-X Series
Technical Datasheet
Connector TypeCircular Industrial
Product RangeMicro-Con-X Series
Circular Connector Shell StyleCable Mount Receptacle
No. of Contacts2Contacts
Circular Contact TypeSolder Socket
Coupling Style-
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact MaterialBrass
Contact PlatingGold
Product Overview
The 16282-2SG-318 is a 2-way black cable-end solder-cup style Circular Socket with short weather-tight backshell, 0.18 to 0.2-inch grommet, 20 to 24AWG contacts. This Micro-Con-X series socket with gold-plated brass contacts, nylon body, Santoprene rubber grommet.
- 3 to 7.5A Current rating
- 600V Voltage rating
- IP67 Protection rating
Applications
Sensing & Instrumentation, Medical, Lighting, Communications & Networking, Industrial
Technical Specifications
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Receptacle
Circular Contact Type
Solder Socket
Connector Body Material
Nylon (Polyamide) Body
Contact Material
Brass
Product Range
Micro-Con-X Series
No. of Contacts
2Contacts
Coupling Style
-
Connector Body Plating
-
Contact Plating
Gold
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004309
