TA3FX
XLR Connector, 3 Contacts, Jack, Cable Mount, Silver Plated Contacts, Metal Body, TA Tini Q-G

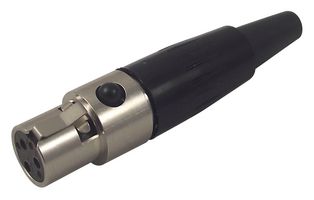

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part NoTA3FX
Order Code1192832
Product RangeTA Tini Q-G
Your Part Number
Technical Datasheet
308 In Stock
Need more?
93 Delivery in 4-6 Business Days(UK stock)
215 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,212.540 |
| 10+ | Rs.1,935.970 |
| 25+ | Rs.1,604.090 |
| 100+ | Rs.1,438.150 |
| 250+ | Rs.1,342.960 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,212.54
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSWITCHCRAFT/CONXALL
Manufacturer Part NoTA3FX
Order Code1192832
Product RangeTA Tini Q-G
Technical Datasheet
No. of Contacts3Contacts
GenderJack
Connector MountingCable Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialMetal Body
Product RangeTA Tini Q-G
SVHCNo SVHC (27-Jun-2024)
Product Overview
The TA3FX is a 3-pole cable -mount Tini Q-G® (Mini XLR) Female Connector with 28 stranded wire gauge. This TA series connector has nickel-plated die-cast zinc female receptacle, black chrome-plated copper alloy black Tini Q-G® housing, silver-plated copper alloy contacts, moulded black thermoplastic elastomer flex relief, moulded black thermoplastic latch button and nickel-plated steel release lever.
- 0.01Ω Maximum after life contact resistance
- 250Vrms Dielectric strength
Applications
Audio
Technical Specifications
No. of Contacts
3Contacts
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
SVHC
No SVHC (27-Jun-2024)
Gender
Jack
Contact Plating
Silver Plated Contacts
Product Range
TA Tini Q-G
Technical Docs (2)
Alternatives for TA3FX
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005852
