| Manufacturer | TDK-LAMBDA |
|---|---|
| Manufacturer Part No | SWS1000L-24Copy |
| Manufacturer Standard Lead Time | 49 weeks |
| Order Code | 1574475 |
| Product Range | SWS1000L Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.72,042.110 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.72,042.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TDK-LAMBDA |
|---|---|
| Manufacturer Part No | SWS1000L-24Copy |
| Manufacturer Standard Lead Time | 49 weeks |
| Order Code | 1574475 |
| Product Range | SWS1000L Series |
| Technical Datasheet | |
| Power Supply Applications | Medical |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | 1.056kW |
| Power Rating (Convection Cooling) | - |
| Input Voltage VAC | 85V AC to 265V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 1 | 44A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Output Voltage - Output 4 | - |
| Current, Output 4 | - |
| Product Range | SWS1000L Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview

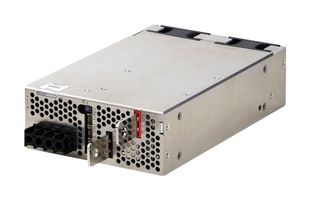

The SWS1000L-24 is a 24V/1.056kW 1-output open-frame Power Supply with quiet temperature controlled fan, low profile, active power factor correction and low acoustic noise. SWS1000L-series supports global use. Suitable for outdoor temperature extremes, assists system compliance. This power supply output is fixed and can be adjustable.
- Universal input
- Level-B EMI
- 150mV Ripple and noise
- 84/86% Efficiency
- -40 to 74°C Operating temperature range
Applications
Power Management
Technical Specifications
| Power Supply Applications | Medical |
|---|---|
| Power Rating (Forced Cooling) | 1.056kW |
| Input Voltage VAC | 85V AC to 265V AC |
| Output Voltage - Output 1 | 24VDC |
| Output Voltage - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 4 | - |
| Product Range | SWS1000L Series |
| No. of Outputs | 1 Output |
|---|---|
| Power Rating (Convection Cooling) | - |
| Power Supply Output Type | Adjustable, Fixed |
| Output Current - Output 1 | 44A |
| Output Current - Output 2 | - |
| Output Current - Output 3 | - |
| Current, Output 4 | - |
| SVHC | No SVHC (15-Jan-2018) |
Alternatives for SWS1000L-24
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 2.902991 |
