2213800-1
Wire Splice, IPX8, CoolSplice, IDC / IDT, 18 AWG, 18 AWG, 0.75 mm², Wire Splice
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.142.610 |
| 15+ | Rs.131.060 |
| 30+ | Rs.127.330 |
| 60+ | Rs.126.080 |
| 105+ | Rs.117.400 |
| 255+ | Rs.115.540 |
| 510+ | Rs.105.610 |
| 1005+ | Rs.102.000 |
Product Information
Product Overview

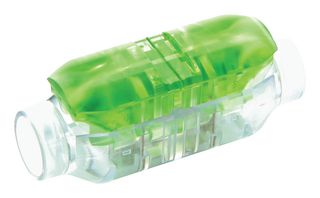

The CoolSplice connector range from TE Connectivity was designed for easy field installation. The CoolSplice Series allows for push button termination using a common pair of pliers. Both wires are terminated independently for ease of use and this feature allows for factory pre-termination of one wire and field termination of the second during installation. The Key benefits are enable a waterproof solution with an IP rated splice and save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC). Typical applications include outdoor lighting, indoor lighting fixtures and wiring harness field repairs.
- Simple push button termination
- Reliable and proven insulation displacement technology
- CoolSplice operating temperature between -40°C and 105°C
- Left/right side independent terminations
- Slim-symmetrical glossy appearance
- Visually controlled termination
Applications
Industrial, Lighting, Maintenance & Repair, Security
Technical Specifications
CoolSplice
18AWG
0.75mm²
Green
Phosphor Bronze
IDC / IDT
18AWG
Wire Splice
PC (Polycarbonate)
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (21-Jan-2025)
Technical Docs (3)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
