966067-9

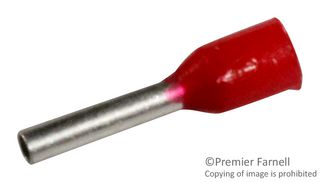

Wire Ferrule, DIN End, Single Wire, 17 AWG, 1 mm², 8 mm, Red
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 966067-9Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1822091 |
| Your Part Number | |
| Technical Datasheet |
112,913 In Stock
Need more?
112,913 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | Rs.11.900 |
| 500+ | Rs.10.660 |
| 1000+ | Rs.10.170 |
| 2500+ | Rs.9.550 |
| 5000+ | Rs.9.360 |
| 10000+ | Rs.9.170 |
Price for:Each
Minimum: 100
Multiple: 100
Rs.1,190.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 966067-9Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1822091 |
| Technical Datasheet | |
| Wire Ferrule Type | Single Wire |
| Wire Size AWG Max | 17AWG |
| Conductor Area CSA | 1mm² |
| Pin Length | 8mm |
| Insulator Colour | Red |
| Product Range | - |
| Overall Length | 14mm |
| Insulator Material | PP (Polypropylene) |
| Terminal Material | Copper Alloy |
| Terminal Plating | Tin |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 966067-9 is a closed barrel Wire Ferrule Terminal with plastic sleeve. It accepts 17AWG wire.
- Straight terminal orientation
- 10mm Strip length
Applications
Industrial
Technical Specifications
| Wire Ferrule Type | Single Wire |
|---|---|
| Conductor Area CSA | 1mm² |
| Insulator Colour | Red |
| Overall Length | 14mm |
| Terminal Material | Copper Alloy |
| SVHC | No SVHC (04-Feb-2026) |
| Wire Size AWG Max | 17AWG |
|---|---|
| Pin Length | 8mm |
| Product Range | - |
| Insulator Material | PP (Polypropylene) |
| Terminal Plating | Tin |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000104 |
