T01-0580-S04

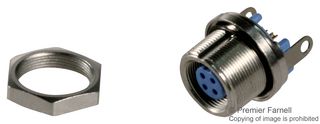

Circular Connector, T01 Series, Bulkhead Receptacle, 4 Contacts

TE CONNECTIVITY T01-0580-S04
TE CONNECTIVITY T01-0580-S04
TE CONNECTIVITY T01-0580-S04
TE CONNECTIVITY T01-0580-S04

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
T01-0580-S04
Order Code:
130916
Product Range
T01 Series
Technical Datasheet:
T01-0580-S04   Datasheet
See all Technical Docs

Product Range Selector (T01 Series)

See all from this product range

Product Overview

The T01-0580-S04 is a 4-way Right Angle Shielded Circular Socket with gold-plated contacts, a CuZn shell and solder termination. The T01 panel mount subminiature connector is a liquid and dust tight system, can be used for application where shielding is a requirement, it accepts 24AWG wire. There is also good resistance against UV beams because of the Optaloy plating for all metal shell parts. The reasonable shielding, the small diameters, the over-moulded connector with cable and the use of metallic parts makes TRIADTM01 also usable in harsh environments such as a factory.
  • Sealed environment protection
  • PBT insert
  • UL94V-2 Flammability rating
  • IP65 Protection rating
  • <6mR Contact resistance
  • 60VAC Voltage rating
  • 625VAC Test voltage
  • -40 to 85°C Operating temperature range

Applications

Industrial, Safety, Medical

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
T01 Series

:
Bulkhead Receptacle

:
4Contacts

:
Solder Socket - Contacts Not Supplied

:
Threaded

:
Copper Alloy Body

:
-

:
-

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Available for back order

More stock available to supplier lead times which is approximately 21/6/21

Notify me when back in stock
