| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | T3DSO1302ACopy |
| Order Code | 4655994 |
| Product Range | T3DSO1000 Series |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | TELEDYNE LECROY |
|---|---|
| Manufacturer Part No | T3DSO1302ACopy |
| Order Code | 4655994 |
| Product Range | T3DSO1000 Series |
| Technical Datasheet | |
| Product Range | T3DSO1000 Series |
| Scope Channels | 2 Channel |
| Bandwidth | 350MHz |
| Sampling Rate | 1GSPS |
| Display Memory Depth | 14 Mpts |
| Calculated Rise Time | 1ns |
| Scope Display Type | TFT LCD Color |
| Kit Contents | DSO, 350MHz, Std Passive Probe, Certification, Quick Start, Power Cord, USB Cable |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

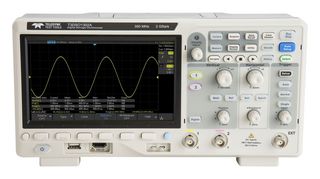

T3DSO1302A is a 350MHz bandwidth, two channels digital signal oscilloscope. When all channels are enabled, each channel has sample rate of 1GS/s and a standard record length of 14Mptss. When only a single channel per ADC is active, the maximum sample rate and the maximum record length are doubled. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
- 7" bright TFT LCD (800 x 480) display
- 7 basic math functions plus FFT and 38 automatic measurement parameters
- Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included
- History waveform record (History) function, maximum recorded waveform length is 80,000 frames
- Waveform capture rate up to 100,000wfm/s (normal mode), and 400,000wfm/s (sequence mode)
- Supports 256-level intensity grading and colour display modes
- USB Host, USB Device, LAN connectivity
- Intelligent trigger: edge, slope, pulse width, window, runt, interval, time out (dropout), pattern
- Video trigger supports HDTV, low background noise with voltage scales from 500 μV/div to 10 V/div
- Dimension is length: 12.28inch / width: 5.22inch / height: 5.94inch
Contents
DSO, 2 x 350MHz T3PP350 passive probes, USB cable x1, Quick start x1, Standard passive probe appropriate to the oscilloscope bandwidth x4 / 2, Certification x1, Power cord x1.
Technical Specifications
| Product Range | T3DSO1000 Series |
|---|---|
| Bandwidth | 350MHz |
| Display Memory Depth | 14 Mpts |
| Scope Display Type | TFT LCD Color |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (21-Jan-2025) |
| Scope Channels | 2 Channel |
|---|---|
| Sampling Rate | 1GSPS |
| Calculated Rise Time | 1ns |
| Kit Contents | DSO, 350MHz, Std Passive Probe, Certification, Quick Start, Power Cord, USB Cable |
| Plug Type | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | 3A992 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
