| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEN 40-4822NCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3795422 |
| Product Range | TEN 40N Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.6,883.510 |
| 5+ | Rs.6,827.150 |
| 10+ | Rs.6,770.780 |
| 50+ | Rs.6,517.600 |
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEN 40-4822NCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3795422 |
| Product Range | TEN 40N Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | DIP |
| Input Ratio | 2:1 |
| Output Power Max | 40W |
| No. of Outputs | 2 Output |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 1.67A |
| Output Voltage - Output 2 | -12V |
| Output Current - Output 2 | 1.67A |
| Output Regulation | - |
| Isolation Voltage | 1.5kV |
| Input Voltage DC Nom | 48V |
| DC / DC Converter Output Type | Fixed |
| Width | 25.4mm |
| Height | 10.2mm |
| Depth | 50.8mm |
| Input Voltage DC Min | 36V |
| Input Voltage DC Max | 75V |
| Product Range | TEN 40N Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

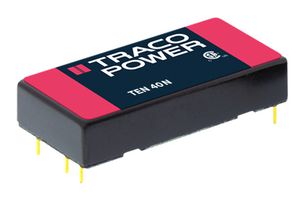

TEN 40N series is a new range of isolated high performance DC to DC converter modules. Due to the very high efficiency of these 40W converters come with a footprint of only 1.0” x 2.0”. The models have a wide 2:1 input voltage range and a tight output voltage regulation. The output voltage is adjustable by external resistor. Remote on/off and protection against overpower and overvoltage are standard features of these converters. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical. It complies with IEC/EN 60950-1 (2nd Ed) + A1:2009, UL 62368-1, CAN/CSA-C22.2 No 60950-1-07 + Am1:2011 and UL 60950-1, (2nd Ed) + Am1:2011 safety standards.
- Highest power density: 40W in 1” x 2” x 0.4” package
- Excellent efficiency
- Adjustable output voltage
- Short circuit protection and overvoltage protection
- I/O isolation voltage of 1500VDC
- Operating temperature range from -40°C to +80°C
- 3-year product warranty
- Switching frequency (fixed) of 320KHz typ (pulse width modulation PWM)
- Aluminium casing material, epoxy (UL 94V-0 rated) potting material
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Input Ratio | 2:1 |
| No. of Outputs | 2 Output |
| Output Current - Output 1 | 1.67A |
| Output Current - Output 2 | 1.67A |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10.2mm |
| Input Voltage DC Min | 36V |
| Product Range | TEN 40N Series |
| DC / DC Converter Type | DIP |
|---|---|
| Output Power Max | 40W |
| Output Voltage - Output 1 | 12V |
| Output Voltage - Output 2 | -12V |
| Output Regulation | - |
| Input Voltage DC Nom | 48V |
| Width | 25.4mm |
| Depth | 50.8mm |
| Input Voltage DC Max | 75V |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (2)
Alternatives for TEN 40-4822N
4 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .03 |
