| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEP 75-2415WICopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 1772228 |
| Product Range | TEP 75WI Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.11,870.440 |
| 5+ | Rs.11,774.020 |
| 10+ | Rs.11,677.590 |
| 50+ | Rs.11,240.520 |
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEP 75-2415WICopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 1772228 |
| Product Range | TEP 75WI Series |
| Technical Datasheet | |
| Power Supply Applications | Railway |
| DC / DC Converter Type | Module |
| Input Ratio | 4:1 |
| Output Power Max | 75W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 3.2A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Regulation | - |
| Isolation Voltage | 3kV |
| Input Voltage DC Nom | 24V |
| DC / DC Converter Output Type | Fixed |
| Width | 61mm |
| Height | 12.7mm |
| Depth | 48.26mm |
| Input Voltage DC Min | 9V |
| Input Voltage DC Max | 36V |
| Product Range | TEP 75WI Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

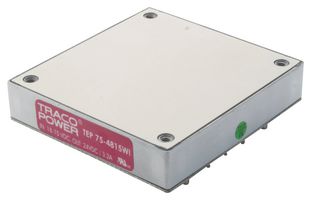

The TEP 75-2415WI is a 1-output DC to DC Converter with ultra wide 4:1 input voltage ranges. The TEP-75WI series 75W isolated high performance DC/DC converter module is suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also a unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating. The very wide input voltage range and reverse input voltage protection make this converter also an interesting solution for battery operated systems.
- Rugged, compact metal case
- EN 50155 approval for railway applications
- Output voltage trimming
- Remote on/off
- Under-voltage lockout
- Reverse input voltage protection
- Input protection filter
Applications
Power Management, Industrial
Technical Specifications
| Power Supply Applications | Railway |
|---|---|
| Input Ratio | 4:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 3.2A |
| Output Current - Output 2 | - |
| Isolation Voltage | 3kV |
| DC / DC Converter Output Type | Fixed |
| Height | 12.7mm |
| Input Voltage DC Min | 9V |
| Product Range | TEP 75WI Series |
| DC / DC Converter Type | Module |
|---|---|
| Output Power Max | 75W |
| Output Voltage - Output 1 | 24V |
| Output Voltage - Output 2 | - |
| Output Regulation | - |
| Input Voltage DC Nom | 24V |
| Width | 61mm |
| Depth | 48.26mm |
| Input Voltage DC Max | 36V |
| SVHC | Lead (04-Feb-2026) |
Alternatives for TEP 75-2415WI
3 Products Found
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .097 |
