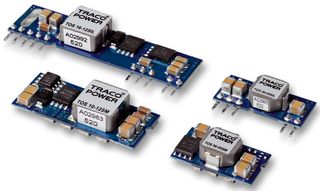

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TOS 06-05SILCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1007589 |
| Product Range | TOS 06SIL series |
| Your Part Number | |
| Technical Datasheet |
10 In Stock
55 more incoming. You can reserve stock now
10 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,106.620 |
| 5+ | Rs.2,100.830 |
| 10+ | Rs.1,986.240 |
| 50+ | Rs.1,931.780 |
| 100+ | Rs.1,908.860 |
| 250+ | Rs.1,880.190 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,106.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TOS 06-05SILCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1007589 |
| Product Range | TOS 06SIL series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | SIP |
| Output Power Max | 19.8W |
| Output Voltage Min | 750mV |
| Output Voltage Max | 3.3V |
| Output Current Max | 6A |
| DC / DC Converter Output Type | Adjustable |
| Input Voltage DC Min | 2.4V |
| Input Voltage DC Max | 5.5V |
| Height | 6.65mm |
| Depth | 22.9mm |
| Width | 10.2mm |
| Product Range | TOS 06SIL series |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The TOS 06-05SIL is a 19.8W non-isolated DC/DC Converter with very high efficiency that can supply up to 30A of output current. This module provides precisely regulated output voltages which can be set via an external resistor to a value from 0.75 to 5.5VDC. This converter work over a wide input voltage range of 2.4 to 5.5 or 8.3 to 14.0VDC. Further features include remote ON/OFF, under-voltage lockout, over-temperature and over current protection. This product has an open-frame construction with very small footprint.
- Small size, low profile, high performance
- Cost-efficient open frame design
- Wide input voltage range
- Delivers up to 30A with minimal derating
- Fast transient response
- Remote ON/OFF control
- 96% Ultra high efficiency
Applications
Signal Processing, Power Management
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 19.8W |
| Output Voltage Max | 3.3V |
| DC / DC Converter Output Type | Adjustable |
| Input Voltage DC Max | 5.5V |
| Depth | 22.9mm |
| Product Range | TOS 06SIL series |
| DC / DC Converter Type | SIP |
|---|---|
| Output Voltage Min | 750mV |
| Output Current Max | 6A |
| Input Voltage DC Min | 2.4V |
| Height | 6.65mm |
| Width | 10.2mm |
| SVHC | Lead (04-Feb-2026) |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .017236 |
