| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TSR 3-24150Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2080627 |
| Product Range | TSR 3 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.3,230.070 |
| 5+ | Rs.3,109.740 |
| 10+ | Rs.3,059.190 |
| 50+ | Rs.2,944.950 |
| 100+ | Rs.2,896.980 |
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TSR 3-24150Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2080627 |
| Product Range | TSR 3 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | SIP |
| Output Power Max | 18W |
| Output Voltage Min | 5V |
| Output Voltage Max | 15V |
| Output Current Max | 3A |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Min | 10V |
| Input Voltage DC Max | 30V |
| Height | 16.5mm |
| Depth | 10.4mm |
| Width | 6mm |
| Product Range | TSR 3 Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

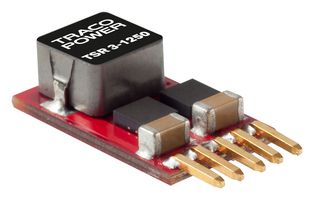

The TSR 3 series from Tracopower are non isolated step down switching regulators. These DC to DC converters can also be operated with negative output voltage and they come in a very compact open frame package of 15.5mm x 9.4mm x 6.2mm. The high efficiency of up to 95% admits full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators. TSR 3 series feature remote on/off input, short circuit protection and overtemperature protection. These models are ideal point of load regulators for highly reliable applications.
- High performance 3A switching regulator
- Suitable for positive and negative output circuit
- Adjustable output voltages
- Wide input voltage ranges from 2.5VDC to 5.5VDC, 4.5VDC to 14VDC and 10VDC to 30VDC
- Low output ripple and noise
- Operating temperature range -40°C to 85°C
- Available in 600KHz and 300KHz switching frequency
Applications
Power Management, Industrial
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 18W |
| Output Voltage Max | 15V |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 30V |
| Depth | 10.4mm |
| Product Range | TSR 3 Series |
| DC / DC Converter Type | SIP |
|---|---|
| Output Voltage Min | 5V |
| Output Current Max | 3A |
| Input Voltage DC Min | 10V |
| Height | 16.5mm |
| Width | 6mm |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0021 |
