45P80-1
PCB, Pad-per-hole, Epoxy Glass Composite, 1.57mm, 114.3mm x 205.23mm

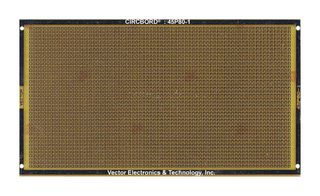

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,860.220 |
| 10+ | Rs.2,483.100 |
| 25+ | Rs.2,433.440 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,860.22
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVECTOR ELECTRONICS
Manufacturer Part No45P80-1
Order Code2850742
Technical Datasheet
Board Type0
Board MaterialEpoxy Glass Composite
Hole Diameter1.07mm
External Height114.3mm
External Width205.2mm
Board Thickness1.57mm
Product Overview
The 45P80-1 is a 114.3 x 205.232mm Prototyping Board made of CEM-1 epoxy glass composite with double side pad-per-hole. This VECTORBORD® CIRCBORD™ board features 1.0668mm hole diameter, 2.54 x 2.54mm grid and ground plane are identical on both sides and holes are not plated through. This board comes with T44/46/49/68 Wire-Wrap Terminals, T42-1 solder terminal and capable to fit 80 16-pin DIP circuit. Top/bottom row on 5.08mm pitch with no plating and isolated 2.159mm square pads around each hole.
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Board Type
0
Hole Diameter
1.07mm
External Width
205.2mm
Board Material
Epoxy Glass Composite
External Height
114.3mm
Board Thickness
1.57mm
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
