| Manufacturer | VIGORTRONIX |
|---|---|
| Manufacturer Part No | VTX-IND5Copy |
| Manufacturer Standard Lead Time | 3 weeks |
| Order Code | 4705473 |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.5,543.330 |
| 2+ | Rs.4,582.450 |
| 3+ | Rs.3,800.760 |
| 5+ | Rs.3,338.160 |
| 10+ | Rs.3,158.140 |
| 20+ | Rs.3,098.540 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.5,543.33
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VIGORTRONIX |
|---|---|
| Manufacturer Part No | VTX-IND5Copy |
| Manufacturer Standard Lead Time | 3 weeks |
| Order Code | 4705473 |
| Technical Datasheet | |
| Product Range | - |
| Inductance | 20H |
| DC Current Rating | 60mA |
| DC Resistance Max | 463ohm |
| Inductance Tolerance | - |
| Self Resonant Frequency Min | - |
| Inductor Case Style | 72mm x 60mm x 49mm |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview

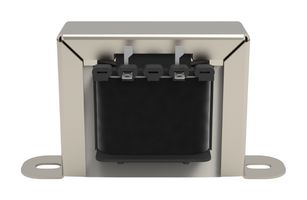

VTX-IND5 is an inductor in a chassis mount package. It is commonly used in audio circuits where variable inductance is needed for filtering, equalization, or other signal-shaping purposes.
- 20H maximum inductance
- 463ohm DC resistance
- 0 - 60mA DC current
- 60 x 46 x 49mm size
Technical Specifications
| Product Range | - |
|---|---|
| DC Current Rating | 60mA |
| Inductance Tolerance | - |
| Inductor Case Style | 72mm x 60mm x 49mm |
| Inductance | 20H |
|---|---|
| DC Resistance Max | 463ohm |
| Self Resonant Frequency Min | - |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85189000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .38 |
