FR 7.12, 8 OHM

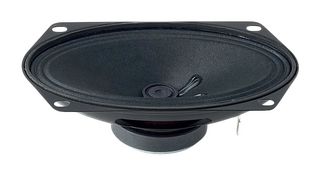

Speaker, Full Range, 15 W, 8 ohm, 70 Hz to 18 kHz, Panel Mount
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VISATON |
|---|---|
| Manufacturer Part No | FR 7.12, 8 OHMCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3772109 |
| Your Part Number | |
| Technical Datasheet |
12 In Stock
Need more?
12 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,050.610 |
| 2+ | Rs.1,938.930 |
| 3+ | Rs.1,827.240 |
| 5+ | Rs.1,715.550 |
| 10+ | Rs.1,603.860 |
| 20+ | Rs.1,571.790 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,050.61
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISATON |
|---|---|
| Manufacturer Part No | FR 7.12, 8 OHMCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3772109 |
| Technical Datasheet | |
| Driver Type | Full-range |
| Impedance | 8ohm |
| Power Rating Nom | 15W |
| Resonant Frequency | 110Hz |
| Sound Pressure Level (SPL) | 85dB |
| Speaker Shape | Round |
| Product Dimensions | 126mm x 79mm x 37mm |
| Frequency Response Min | 70Hz |
| Frequency Range | 150Hz to 18kHz |
| Frequency Response Max | 18kHz |
| Temperature Grade | - |
| IP Rating | - |
| Product Range | - |
| Speaker Mounting | Panel Mount |
| Power Rating Max | 40W |
| External Depth - Metric | 31mm |
| External Depth - Imperial | 1.22" |
| SVHC | No SVHC (04-Feb-2026) |
Technical Specifications
| Driver Type | Full-range |
|---|---|
| Power Rating Nom | 15W |
| Sound Pressure Level (SPL) | 85dB |
| Product Dimensions | 126mm x 79mm x 37mm |
| Frequency Range | 150Hz to 18kHz |
| Temperature Grade | - |
| Product Range | - |
| Power Rating Max | 40W |
| External Depth - Imperial | 1.22" |
| Impedance | 8ohm |
|---|---|
| Resonant Frequency | 110Hz |
| Speaker Shape | Round |
| Frequency Response Min | 70Hz |
| Frequency Response Max | 18kHz |
| IP Rating | - |
| Speaker Mounting | Panel Mount |
| External Depth - Metric | 31mm |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .284 |
