Y14830R00100F9R
SMD Current Sense Resistor, 1000 µohm, CSM2512A Series, 2512 [6432 Metric], 5 W, ± 1%

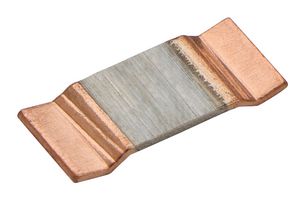

Image is for illustrative purposes only. Please refer to product description.
![VPG FOIL RESISTORS Y14830R00100F9R SMD Current Sense Resistor, 1000 µohm, CSM2512A Series, 2512 [6432 Metric], 5 W, ± 1%](https://in.element14.com/productimages/standard/en_GB/3994331-40.jpg)
| Manufacturer | VPG FOIL RESISTORS |
|---|---|
| Manufacturer Part No | Y14830R00100F9RCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 3994334 |
| Product Range | CSM2512A Series |
| Your Part Number | |
| Technical Datasheet |
5,779 In Stock
Need more?
5,779 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.129.610 |
| 100+ | Rs.90.970 |
| 500+ | Rs.73.990 |
| 1000+ | Rs.68.440 |
| 3000+ | Rs.67.080 |
| 6000+ | Rs.65.710 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.129.61
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VPG FOIL RESISTORS |
|---|---|
| Manufacturer Part No | Y14830R00100F9RCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 3994334 |
| Product Range | CSM2512A Series |
| Technical Datasheet | |
| Resistance | 1000µohm |
| Product Range | CSM2512A Series |
| Resistor Case / Package | 2512 [6432 Metric] |
| Power Rating | 5W |
| Resistance Tolerance | ± 1% |
| Resistor Technology | Metal Strip |
| Temperature Coefficient | ± 100ppm/°C |
| Product Length | 6.3mm |
| Product Width | 3.1mm |
| Product Height | 0.95mm |
| Operating Temperature Min | -65°C |
| Operating Temperature Max | 170°C |
| Qualification | AEC-Q200 |
| SVHC | To Be Advised |
Technical Specifications
| Resistance | 1000µohm |
|---|---|
| Resistor Case / Package | 2512 [6432 Metric] |
| Resistance Tolerance | ± 1% |
| Temperature Coefficient | ± 100ppm/°C |
| Product Width | 3.1mm |
| Operating Temperature Min | -65°C |
| Qualification | AEC-Q200 |
| Product Range | CSM2512A Series |
|---|---|
| Power Rating | 5W |
| Resistor Technology | Metal Strip |
| Product Length | 6.3mm |
| Product Height | 0.95mm |
| Operating Temperature Max | 170°C |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Israel Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85332119 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .09 |
