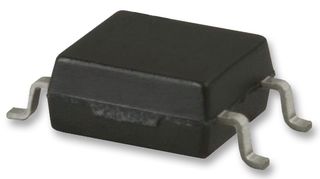

LH1546ADF
MOSFET Relay, 350 V, 120 mA, 35 ohm, SPST-NO
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.175.150 |
| 10+ | Rs.160.590 |
| 25+ | Rs.147.080 |
| 100+ | Rs.131.480 |
| 250+ | Rs.127.330 |
| 500+ | Rs.125.230 |
| 1000+ | Rs.123.150 |
| 2000+ | Rs.121.080 |
| 4000+ | Rs.116.930 |
Product Information
Product Overview
The LH1546ADF is a Solid State Relay with SPST-NO contact and surface-mount terminals. This 1-form-A relay is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated BCDMOS technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. It employs current-limiting circuitry which meets lightning surge testing as per ANSI/TIA-968-B and other regulatory voltage surge requirements when overvoltage protection is provided.
- Current limit protection
- High surge capability
- Clean bounce-free switching
- Low power consumption
- High reliability monolithic detector
- 550mW Power dissipation
- 3ms Turn-on/off maximum time
- -40 to 85°C Ambient temperature range
Applications
Communications & Networking, Sensing & Instrumentation, Automation & Process Control
Technical Specifications
SPST-NO (1 Form A)
350V
SMD-4
Gull Wing
5.3kV
500nA
No SVHC (07-Nov-2024)
AC / DC
120mA
Surface Mount
35ohm
1pF
-
Technical Docs (2)
Alternatives for LH1546ADF
3 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
