MAL213669221E3
Electrolytic Capacitor, 220 µF, 100 V, ± 20%, Radial Leaded, 10000 hours @ 105°C, Polar

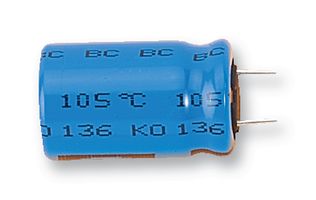

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoMAL213669221E3
Order Code1165516
Product Range136 RVI Series
Also Known As222213669221
Technical Datasheet
264 In Stock
Need more?
264 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.356.240 |
| 10+ | Rs.257.930 |
| 25+ | Rs.236.180 |
| 50+ | Rs.214.430 |
| 100+ | Rs.204.860 |
| 250+ | Rs.197.030 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.356.24
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoMAL213669221E3
Order Code1165516
Product Range136 RVI Series
Also Known As222213669221
Technical Datasheet
Capacitance220µF
Voltage(DC)100V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature10000 hours @ 105°C
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing7.5mm
Product Diameter16mm
Product Length-
Product Width-
Product Height25mm
Product Range136 RVI Series
ESR0.51ohm
Ripple Current1.3A
Operating Temperature Min-55°C
Operating Temperature Max105°C
Qualification-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The 136 RVI series radial leaded Aluminium Capacitor with cylindrical aluminium case with pressure relief and insulated in a blue sleeve. It is a polarized aluminium electrolytic capacitor with non-solid electrolyte. It features excellent ripple current capability, very low impedance and high reliability. It is used in power supplies (SMPS, DC/DC converters) for general industrial, EDP and telecommunications. It is also used for Smoothing, filtering and buffering applications.
- 4000 to 10000hrs at 105°C Very long useful life
- 10 to 100V Rated voltage range
- 22 to 10000μF Rated capacitance range
- Low ESR
- Charge and discharge proof
Applications
Industrial, Communications & Networking, Audio, Imaging, Video & Vision
Technical Specifications
Capacitance
220µF
Capacitance Tolerance
± 20%
Lifetime @ Temperature
10000 hours @ 105°C
Capacitor Case / Package
Radial Leaded
Product Diameter
16mm
Product Width
-
Product Range
136 RVI Series
Ripple Current
1.3A
Operating Temperature Max
105°C
SVHC
No SVHC (17-Jan-2023)
Voltage(DC)
100V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Lead Spacing
7.5mm
Product Length
-
Product Height
25mm
ESR
0.51ohm
Operating Temperature Min
-55°C
Qualification
-
Technical Docs (2)
Alternatives for MAL213669221E3
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Tariff No:85322990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.008
