117 In Stock
10 more incoming. You can reserve stock now
7 Delivery in 4-6 Business Days(UK stock)
110 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.3,703.750 |
| 2+ | Rs.3,466.170 |
| 3+ | Rs.3,200.420 |
| 5+ | Rs.3,050.490 |
| 10+ | Rs.2,843.510 |
| 20+ | Rs.2,683.310 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.3,703.75
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | RH504R000FS03Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1703814 |
| Product Range | RH Series |
| Technical Datasheet | |
| Resistance | 4ohm |
| Product Range | RH Series |
| Power Rating | 50W |
| Resistance Tolerance | ± 1% |
| Resistor Terminals | Solder Lug |
| Voltage Rating | 1.285kV |
| Resistor Technology | Wirewound |
| Temperature Coefficient | ± 15ppm/°C |
| Resistor Type | High Stability |
| Resistor Mounting | Panel Mount |
| Product Length | 50mm |
| Product Width | 29.4mm |
| Product Height | 15mm |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 200°C |
| Qualification | - |
| SVHC | No SVHC (15-Jun-2015) |
Product Overview

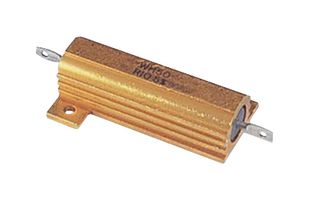

The RH-50 4R000 +/-1.0% is a heatsink encased wirewound Power Resistor. Encased in a compact and light heatsink offering complete environmental protection, great mechanical strength and easy mounting. Non inductive versions can be supplied under the RHNI designation.
- Great Mechanical Strength
- Easy to Mount
- 2500V Dielectric Strength
- 1285V Rated Maximum Voltage
- High Power Resistor
Technical Specifications
| Resistance | 4ohm |
|---|---|
| Power Rating | 50W |
| Resistor Terminals | Solder Lug |
| Resistor Technology | Wirewound |
| Resistor Type | High Stability |
| Product Length | 50mm |
| Product Height | 15mm |
| Operating Temperature Max | 200°C |
| SVHC | No SVHC (15-Jun-2015) |
| Product Range | RH Series |
|---|---|
| Resistance Tolerance | ± 1% |
| Voltage Rating | 1.285kV |
| Temperature Coefficient | ± 15ppm/°C |
| Resistor Mounting | Panel Mount |
| Product Width | 29.4mm |
| Operating Temperature Min | -55°C |
| Qualification | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85332919 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | No |
| RoHS Phthalates Compliant: | No |
| SVHC: | No SVHC (15-Jun-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .023 |
