TCLD1000
Optocoupler, Darlington Output, 1 Channel, SOP, 4 Pins, 60 mA, 5 kV, 600 %

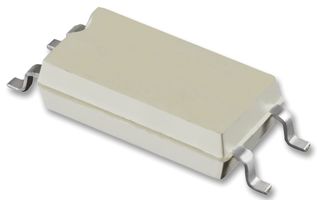

Image is for illustrative purposes only. Please refer to product description.
1,998 In Stock
Need more?
1998 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.60.740 |
| 10+ | Rs.41.680 |
| 25+ | Rs.38.070 |
| 50+ | Rs.34.460 |
| 100+ | Rs.30.840 |
| 500+ | Rs.26.170 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
Rs.60.74
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The TCLD1000 is a 1-channel 4-pin Optocoupler with photodarlington output. It consists of a Darlington phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It is suitable for switch-mode power supplies, line receiver and microprocessor system interface.
- High common mode rejection
- 0.2pF Typical extra low coupling capacity
- <gt/>8mm Creepage distance
- 6V Reverse voltage
- 1.5A Forward surge current
Applications
Power Management, Signal Processing, Computers & Computer Peripherals
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
No. of Channels
1 Channel
No. of Pins
4Pins
Isolation Voltage
5kV
Collector Emitter Voltage V(br)ceo
35V
SVHC
No SVHC (07-Nov-2024)
Optocoupler Case Style
SOP
Forward Current If Max
60mA
CTR Min
600%
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85414090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0005
