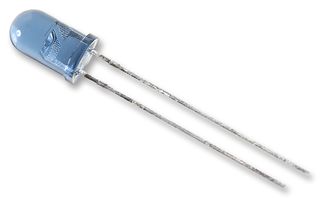

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSAL6200Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 3152856 |
| Your Part Number | |
| Technical Datasheet |
24,248 In Stock
16,000 more incoming. You can reserve stock now
325 Delivery in 3-5 Business Days(SG stock)
23,923 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 5+ | Rs.48.730 |
| 10+ | Rs.33.630 |
| 100+ | Rs.24.080 |
| 500+ | Rs.19.790 |
| 1000+ | Rs.18.430 |
Price for:Each
Minimum: 5
Multiple: 5
Rs.243.65
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSAL6200Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 3152856 |
| Technical Datasheet | |
| Peak Wavelength | 940nm |
| Angle of Half Intensity | 17° |
| Diode Case Style | T-1 3/4 (5mm) |
| Radiant Intensity (Ie) | 15mW/Sr |
| Rise Time | 15ns |
| Fall Time tf | 15ns |
| Forward Current If(AV) | 100mA |
| Forward Voltage VF Max | 1.6V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| Product Range | - |
| MSL | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The TSAL6200 is a 940nm Infrared Emitting Diode in GaAlAs Multi Quantum Well (MQW) technology with high radiant power and high speed moulded in a blue-grey plastic package. It is suitable for use in infrared remote control units with high power requirements, free air transmission systems, infrared source for optical counters and card readers.
- High Reliability
- High Radiant Power
- High Radiant Intensity
- Low Forward Voltage
- Suitable for High Pulse Current Operation
- Good Spectral Matching with Si Photodetectors
- Halogen-free
Technical Specifications
| Peak Wavelength | 940nm |
|---|---|
| Diode Case Style | T-1 3/4 (5mm) |
| Rise Time | 15ns |
| Forward Current If(AV) | 100mA |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| MSL | - |
| Angle of Half Intensity | 17° |
|---|---|
| Radiant Intensity (Ie) | 15mW/Sr |
| Fall Time tf | 15ns |
| Forward Voltage VF Max | 1.6V |
| Operating Temperature Max | 85°C |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00068 |
