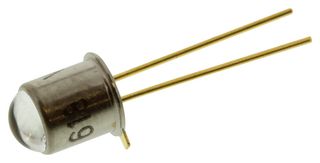

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSTS7100Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 1652535 |
| Your Part Number | |
| Technical Datasheet |
962 In Stock
Need more?
891 Delivery in 4-6 Business Days(UK stock)
71 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.452.170 |
| 10+ | Rs.335.240 |
| 25+ | Rs.312.180 |
| 50+ | Rs.289.110 |
| 100+ | Rs.266.040 |
| 500+ | Rs.235.840 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.452.17
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSTS7100Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 1652535 |
| Technical Datasheet | |
| Peak Wavelength | 950nm |
| Angle of Half Intensity | 5° |
| Diode Case Style | TO-18 |
| Radiant Intensity (Ie) | 800mW/Sr |
| Rise Time | 800ns |
| Fall Time tf | - |
| Forward Current If(AV) | 100mA |
| Forward Voltage VF Max | 1.3V |
| Operating Temperature Min | - |
| Operating Temperature Max | - |
| Automotive Qualification Standard | - |
| Product Range | - |
| MSL | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
950nm emitting diode in GaAs technology in a hermetically sealed package suitable for use in radiation source in near infrared range.
- High reliability
- High radiant power
- High radiant intensity
- Angle of half intensity: ϕ = ±5°
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching with Si photodetectors
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Peak Wavelength | 950nm |
|---|---|
| Diode Case Style | TO-18 |
| Rise Time | 800ns |
| Forward Current If(AV) | 100mA |
| Operating Temperature Min | - |
| Automotive Qualification Standard | - |
| MSL | - |
| Angle of Half Intensity | 5° |
|---|---|
| Radiant Intensity (Ie) | 800mW/Sr |
| Fall Time tf | - |
| Forward Voltage VF Max | 1.3V |
| Operating Temperature Max | - |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000334 |
