2060-452/998-404
Wire-To-Board Terminal Block, Push-Button, 4 mm, 2 Ways, 24 AWG, 18 AWG, 0.75 mm², Push In
16,475 In Stock
125 more incoming. You can reserve stock now
904 Delivery in 3-5 Business Days(SG stock)
15571 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.128.940 |
| 10+ | Rs.94.530 |
| 25+ | Rs.82.670 |
| 50+ | Rs.74.940 |
| 100+ | Rs.68.360 |
| 250+ | Rs.61.310 |
| 500+ | Rs.57.110 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.128.94
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2060-452/998-404
Order Code2499130
Product Range2060
Also Known AsGTIN UPC EAN: 4055143135078
Technical Datasheet
Pitch Spacing4mm
No. of Positions2Ways
Wire Size AWG Min24AWG
Wire Size AWG Max18AWG
Conductor Area CSA0.75mm²
Wire Connection MethodPush In
Rated Current9A
Rated Voltage160V
Block OrientationSurface Mount Right Angle
Product Range2060
SVHCNo SVHC (21-Jan-2025)
Product Overview

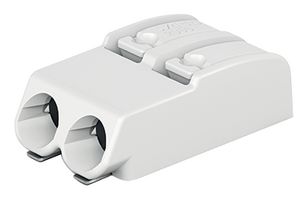

The 2060-452/998-404 from Wago is a 2 pole, 4mm pin spacing SMD terminal block with push-in CAGE CLAMP and pushbuttons.
- 2 connection point and 2 potential point
- White colour terminal strip
- Dimension is 7.9mm x 4.5mm x 13.1mm (W x H x L)
- Polyphthalamide glass fibre insulating material
- Copper alloy contact with tin platting
- Limit temperature range from -60°C to 105°C
- Weight is 0.96g, rated voltage (III/2) is 160V and nominal current is 9A
- Flammability rating meets UL94 V-0
- Suitable for wire size ranging from 24AWG to 18AWG
- Meets IEC/EN 60664-1 standards
Applications
Industrial
Technical Specifications
Pitch Spacing
4mm
Wire Size AWG Min
24AWG
Conductor Area CSA
0.75mm²
Rated Current
9A
Block Orientation
Surface Mount Right Angle
SVHC
No SVHC (21-Jan-2025)
No. of Positions
2Ways
Wire Size AWG Max
18AWG
Wire Connection Method
Push In
Rated Voltage
160V
Product Range
2060
Technical Docs (3)
Alternatives for 2060-452/998-404
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0009
