0690700000

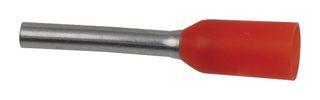

Wire Ferrule, Single Wire, 20 AWG, 0.5 mm², 8 mm, Orange
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 0690700000Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2579733 |
| Also Known As | H0,5/14 OR |
| Your Part Number | |
| Technical Datasheet |
593 In Stock
Need more?
12 Delivery in 3-5 Business Days(SG stock)
110 Delivery in 4-6 Business Days(UK stock)
471 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,948.040 |
| 5+ | Rs.2,775.790 |
| 10+ | Rs.2,661.280 |
| 25+ | Rs.2,558.320 |
| 50+ | Rs.2,434.190 |
| 100+ | Rs.2,352.400 |
Price for:Pack of 500
Minimum: 1
Multiple: 1
Rs.2,948.04
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 0690700000Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2579733 |
| Also Known As | H0,5/14 OR |
| Technical Datasheet | |
| Wire Ferrule Type | Single Wire |
| Wire Size AWG Max | 20AWG |
| Conductor Area CSA | 0.5mm² |
| Pin Length | 8mm |
| Insulator Colour | Orange |
| Product Range | - |
| Overall Length | 14mm |
| Insulator Material | PP (Polypropylene) |
| Terminal Material | Copper |
| Terminal Plating | Tin |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
The 0690700000 is a 14mm Orange Insulated Wire End Ferrule with 2.6mm collar diameter, 10mm stripping length and 20AWG wire cross section area. The use of H0,5/14 OR wire end ferrules ensures that users get electrical connections of long-lasting, consistent quality.
- 0.5mm² Conductor cross section
Applications
Industrial
Technical Specifications
| Wire Ferrule Type | Single Wire |
|---|---|
| Conductor Area CSA | 0.5mm² |
| Insulator Colour | Orange |
| Overall Length | 14mm |
| Terminal Material | Copper |
| SVHC | No SVHC (23-Jan-2024) |
| Wire Size AWG Max | 20AWG |
|---|---|
| Pin Length | 8mm |
| Product Range | - |
| Insulator Material | PP (Polypropylene) |
| Terminal Plating | Tin |
Technical Docs (1)
Alternatives for 0690700000
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .036288 |
