1208600000
Heavy Duty Connector, Base, Bulkhead Mount, Aluminium Body, 2 Lever, 16B, HDC 16B Inserts & Hoods

| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 1208600000Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1361644 |
| Product Range | RockStar |
| Also Known As | HDC 16B ABU |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.3,098.920 |
| 10+ | Rs.3,036.950 |
| 25+ | Rs.2,974.970 |
| 100+ | Rs.2,912.990 |
| 250+ | Rs.2,851.010 |
| 500+ | Rs.2,789.030 |
Product Information
| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 1208600000Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1361644 |
| Product Range | RockStar |
| Also Known As | HDC 16B ABU |
| Technical Datasheet | |
| Heavy Duty Connector Type | Base, Bulkhead Mount |
| Connector Body Material | Aluminium Body |
| Locking Type | 2 Lever |
| Rectangular Shell Size | 16B |
| For Use With | HDC 16B Inserts & Hoods |
| Product Range | RockStar |
| SVHC | Lead (23-Jan-2024) |
Product Overview

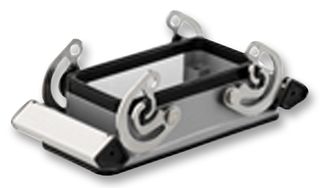

The 1208600000 is a size-6 bulkhead HDC Enclosure made of die-cast aluminum with powder coating finish and rust-proof stainless steel locking element. The HDC 16B ABU enclosure guarantees a long lifespan with high resistance to corrosion and impact. The housing interlock system provides integrated safety. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. The laser marking allows for easy and quick identification. The housing is permanently labeled with a laser marking so that each product can be quickly designated and positioned. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings.
- Standard design
- Side-locking clamp on lower side locking system
- NBR sealing
- UNDEFINED TEXT protection degree
Applications
Industrial
Technical Specifications
| Heavy Duty Connector Type | Base, Bulkhead Mount |
|---|---|
| Locking Type | 2 Lever |
| For Use With | HDC 16B Inserts & Hoods |
| SVHC | Lead (23-Jan-2024) |
| Connector Body Material | Aluminium Body |
|---|---|
| Rectangular Shell Size | 16B |
| Product Range | RockStar |
Technical Docs (2)
Alternatives for 1208600000
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .156489 |
