Heavy Duty Connector, Insert, HA Series, Cable Mount, Receptacle, 16 Contacts, 2 Rows, Socket

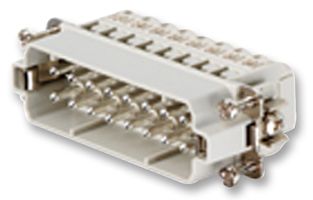

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 1650780000Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1361604 |
| Product Range | HA Series |
| Also Known As | HDC HA 16 FS |
| Your Part Number | |
| Technical Datasheet |
5 In Stock
Need more?
5 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,293.560 |
| 10+ | Rs.2,247.690 |
| 25+ | Rs.2,201.820 |
| 100+ | Rs.2,155.950 |
| 250+ | Rs.2,110.080 |
| 500+ | Rs.2,064.210 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,293.56
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WEIDMULLER |
|---|---|
| Manufacturer Part No | 1650780000Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1361604 |
| Product Range | HA Series |
| Also Known As | HDC HA 16 FS |
| Technical Datasheet | |
| Product Range | HA Series |
| Connector Mounting | Cable Mount |
| Gender | Receptacle(View Associated Connectors) |
| No. of Contacts | 16Contacts |
| No. of Rows | 2Rows |
| Contact Gender | Socket |
| Contact Termination Type | Screw |
| Connector Shell Size | 5 |
| Contact Material | Copper |
| Contact Plating | Silver Plated Contacts |
| SVHC | Lead (23-Jan-2024) |
Product Overview
The 1650780000 is a 16-position heavy-duty Female Insert with screw connection. The HDC series insert made of PC glass-fiber reinforced (UL-listed and railway-certified). It is suitable for use with HA series rectangular power connectors.
- 2.5mm² Conductor cross-section
- ≤2mΩ Volume resistance
- 10¹⁰Ω Insulation resistance
- ≥500 Plugging cycles (silver)
- 16A Rated current (DIN EN 61984)
- 4kV Rated impulse voltage (DIN EN 61984)
- 250V Rated voltage (DIN EN 61984)
- UL94V-0 Flammability rating
- -40 to 125°C Limit temperature range
Applications
Power Management
Technical Specifications
| Product Range | HA Series |
|---|---|
| Gender | Receptacle |
| No. of Rows | 2Rows |
| Contact Termination Type | Screw |
| Contact Material | Copper |
| SVHC | Lead (23-Jan-2024) |
| Connector Mounting | Cable Mount |
|---|---|
| No. of Contacts | 16Contacts |
| Contact Gender | Socket |
| Connector Shell Size | 5 |
| Contact Plating | Silver Plated Contacts |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .070307 |
