WERA 05020150001

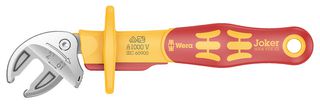

Spanner, Self-Adjustable, 10 mm Jaw, 119 mm Length, Joker 6004 Series

WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
WERA 05020150001
Video
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
WERA WERA
Manufacturer Part No:
05020150001
Order Code:
4069610
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
020150
Technical Datasheet:
05020150001   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (Joker 6004 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
119mm

:
10mm

:
Joker 6004 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

Individually tested tools as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000V. The adjustable VDE spanner continuously and automatically grips all hexagonal sizes in the indicated range of dimensions - metric and imperial. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a back-pivoting angle of only 30° can be achieved. The single-arm design, in conjunction with the ratchet feature and the corner-width prism, makes it possible to work even in confined spaces. The adjustable Joker 6004 VDE has a naturally comfortable handle thanks to the 2-component plastic insulation. Safety is increased by the anti-slip protection at the front end of the handle. The sliding function offers contactless and safe opening of the non-insulated jaws, thereby providing extra protection.
  • The adjustable Joker 6004 VDE covers all metric and imperial dimensions in the respective field of application
  • Individually tested tools with insulated handles for safe working up to 1000 volts
  • With anti-slip protection and sliding function for contactless and safe opening of the non-insulated jaws
  • Automatic and continuous grip of hexagon screws and bolts
  • Lever mechanism when gripping avoids slipping and damage
  • Fast and consistent screwdriving without removing the wrench thanks to mechanical ratchet function
  • Return angle of only 30° through placement in the corner-width rectangular prisms in the mouth

Also Known As

020150
