2607021183000

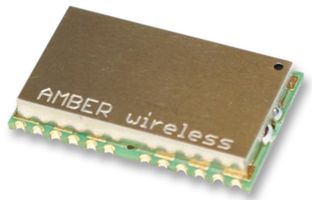

Data Acquisition Module, 2FSK, 66.6Kbps, 868MHz, -109dBm, 2V to 3.6V Supply, UART
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 2607021183000Copy |
| Manufacturer Standard Lead Time | 35 weeks |
| Order Code | Re-Reel2917629RL Cut Tape2917629 |
| Also Known As | AMB8626-M-TR |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 35 week(s)
Notify me when back in stock
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | Rs.4,198.130 | Rs.4,198.13 |
| Total Price | Rs.4,198.13 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | Rs.4,198.130 |
| 5+ | Rs.4,146.540 |
| 10+ | Rs.4,094.950 |
| 50+ | Rs.4,013.060 |
| 100+ | Rs.3,931.160 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WURTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | 2607021183000Copy |
| Manufacturer Standard Lead Time | 35 weeks |
| Order Code | Re-Reel2917629RL Cut Tape2917629 |
| Also Known As | AMB8626-M-TR |
| Technical Datasheet | |
| RF Modulation | 2FSK |
| Data Rate Max | 100Kbps |
| Frequency Max | 868MHz |
| Sensitivity dBm | -109dBm |
| Supply Voltage Min | 2V |
| Supply Voltage Max | 3.6V |
| Transmit Power | - |
| Module Interface | UART |
| Supply Current | 53mA |
| RF Transceiver Applications | Automatic Meter Readers, Low Cost Wireless Data Transfer, Wireless MBUS |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
Metis II radio module for wireless communication using the wM-Bus standard between devices such as meters and smart meter gateways.
- 868MHz low-cost radio module
- Wireless M-Bus EN13757-4:2013 standard
- OMS (Open Metering System) supported
- Range up to 1000m line of sight
- Low-power functions (wake-on-radio)
- Easy switching between operating modes S, T, C
- Adjustable RF data rates
- Communication via UART/SPI Interface
- 14dBm RF output power
Technical Specifications
| RF Modulation | 2FSK |
|---|---|
| Frequency Max | 868MHz |
| Supply Voltage Min | 2V |
| Transmit Power | - |
| Supply Current | 53mA |
| Product Range | - |
| Data Rate Max | 100Kbps |
|---|---|
| Sensitivity dBm | -109dBm |
| Supply Voltage Max | 3.6V |
| Module Interface | UART |
| RF Transceiver Applications | Automatic Meter Readers, Low Cost Wireless Data Transfer, Wireless MBUS |
| SVHC | Lead (04-Feb-2026) |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00304 |
