Power Inductor (SMD), 22 µH, 4.7 A, Shielded, 3.5 A, WE-PDF Series

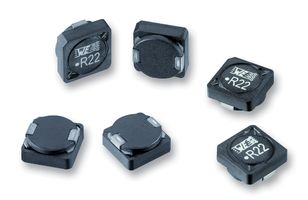

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No7447798221
Order Code1800289
Product RangeWE-PDF Series
Technical Datasheet
64 In Stock
Need more?
64 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.310.590 |
| 10+ | Rs.286.230 |
| 50+ | Rs.276.660 |
| 100+ | Rs.266.220 |
| 200+ | Rs.236.640 |
| 500+ | Rs.207.060 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
Rs.310.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No7447798221
Order Code1800289
Product RangeWE-PDF Series
Technical Datasheet
Inductance22µH
RMS Current (Irms)4.7A
Inductor ConstructionShielded
Saturation Current (Isat)3.5A
Product RangeWE-PDF Series
Inductor Case / Package-
DC Resistance Max0.0373ohm
Inductance Tolerance± 20%
Product Length10.2mm
Product Width10.2mm
Product Height6.4mm
SVHCNo SVHC (21-Jan-2025)
Product Overview
The WE-PDF series SMD shielded Power Inductor with (NiZn) nickel-zinc core. It is suitable for high frequency switching regulators.
- Flat wire power inductor
- Magnetically shielded which results in a low leakage field
- Low self-losses
- High saturation current
- Flat wire coil for lower losses at high frequency ranges
- High self resonance frequency
- Reflow recommended solder profile
- -40 to 150°C Operating temperature range
