Product Information
| Manufacturer | XP POWER |
|---|---|
| Manufacturer Part No | CB101Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2565459 |
| Product Range | CB Series |
| Technical Datasheet | |
| High Voltage Power Supply Type | Regulated |
| Polarity | Positive Output |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Power Rating | 1W |
| Output Current Max | 100µA |
| Power Supply Mounting | Chassis Mount, Through Hole |
| Output Voltage Min | 0V |
| Output Voltage Max | 10kV |
| Input Voltage DC Min | 11.5V |
| Input Voltage DC Max | 16V |
| Product Range | CB Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview

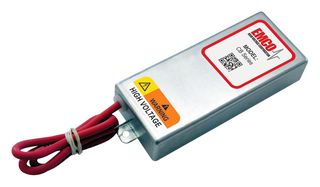

CB series is line of miniature, well-regulated high voltage power supply providing clean and reliable high voltage in a shielded, PCB mount package. It is programmed from 0 to 100% via a 0 to +5 volt DAC compatible high impedance programming input voltage. A built-in reference voltage source can be used in lieu of the programming voltage. A proprietary encapsulation process and high performance formula are used to achieve excellent high voltage and thermal properties. Typical applications are mass spectrometry, electrostatic chucks, capillary electrophoresis, capacitor charging, X-ray detector, test equipment.
- Built-in protection against programming overvoltage and thermal shutdown
- Precision voltage regulated
- Voltage and current monitors, on-board voltage reference
- Temperature coefficient is <lt/>50ppm/°C
- Shielded case with isolated case ground, 3 year warranty
- Dimension is 76.2 x 31.8 x 15.2mm
- 0 to +10KV output voltage
- 100µA output current
- Input voltage range from 11.5 to 16VDC
- Operating temperature range from -10 to +60°C (case)
Technical Specifications
| High Voltage Power Supply Type | Regulated |
|---|---|
| DC / DC Converter Output Type | Fixed, Adjustable |
| Output Current Max | 100µA |
| Output Voltage Min | 0V |
| Input Voltage DC Min | 11.5V |
| Product Range | CB Series |
| Polarity | Positive Output |
|---|---|
| Power Rating | 1W |
| Power Supply Mounting | Chassis Mount, Through Hole |
| Output Voltage Max | 10kV |
| Input Voltage DC Max | 16V |
| SVHC | No SVHC (15-Jan-2018) |
