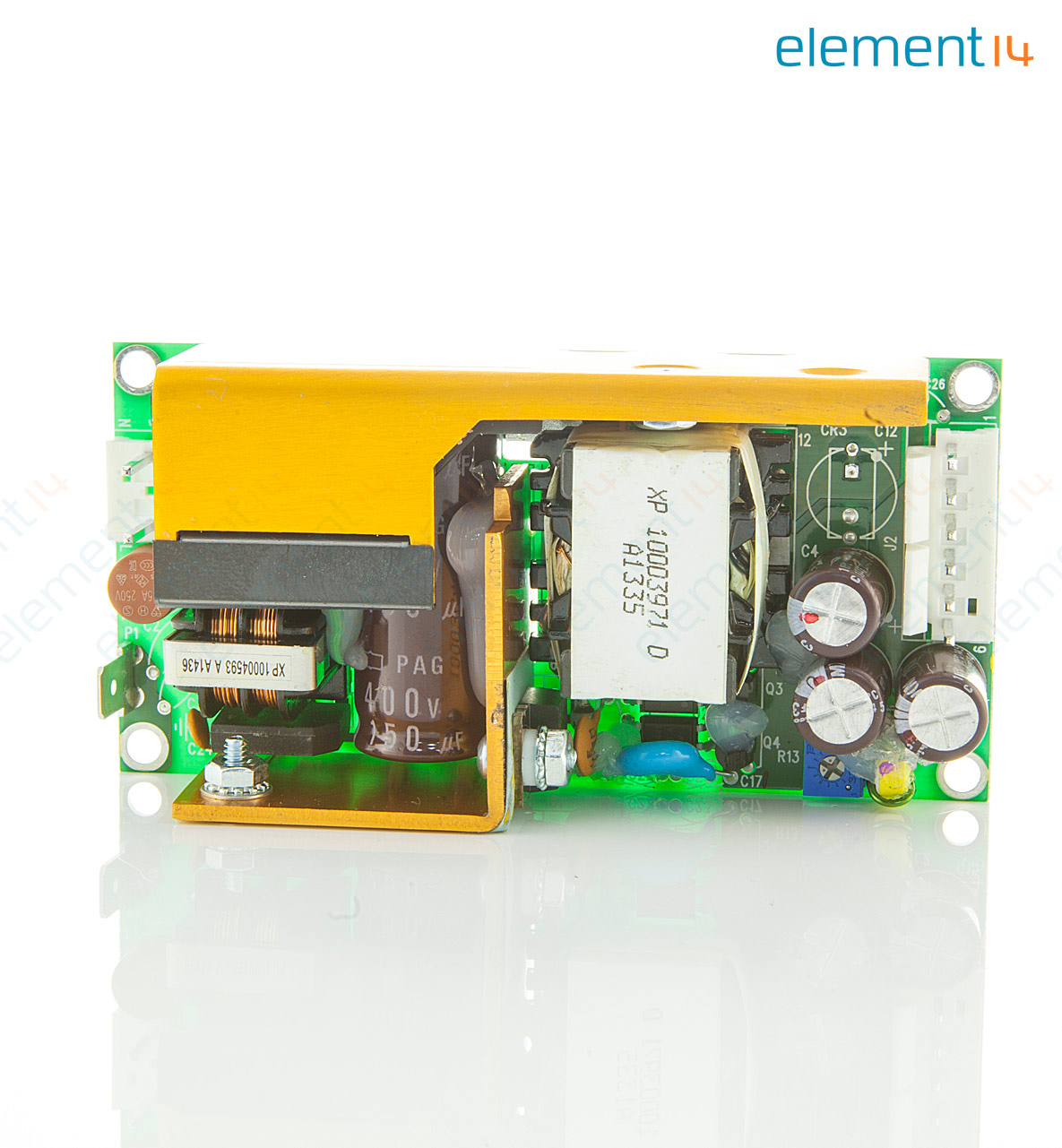

ECM40US18
AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 40 W, 90V AC to 264V AC, Fixed

| Manufacturer | XP POWER |
|---|---|
| Manufacturer Part No | ECM40US18Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1550981 |
| Product Range | ECM40 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.4,741.890 |
| 5+ | Rs.4,599.350 |
| 10+ | Rs.4,457.760 |
| 50+ | Rs.4,267.700 |
| 100+ | Rs.3,984.110 |
Product Information
| Manufacturer | XP POWER |
|---|---|
| Manufacturer Part No | ECM40US18Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1550981 |
| Product Range | ECM40 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE & Medical |
| No. of Outputs | 1 Output |
| Power Rating (Forced Cooling) | - |
| Power Rating (Convection Cooling) | 40W |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Output Voltage - Output 1 | 18VDC |
| Output Current - Output 1 | 2.2A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Output Voltage - Output 4 | - |
| Current, Output 4 | - |
| Product Range | ECM40 Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
ECM series AC-DC converter are approved for Class I and Class II applications. These high-density power supplies meet EN55032 Level B conducted emissions with maximum leakage currents of 100 µA at 115VAC or 200µA at 230VAC. As a result, these switchers are equally suitable for industrial, IT, and medical applications, with no price premium for meeting medical requirements. Comprehensive overvoltage, overload, and short circuit protection are built-inn. covers looms and connector kits are available. Certified by IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017.
- Low leakage current
- Max power is 40W, output voltage is 18.0VDC, efficiency is 80%
- Full load available convection cooled
- Level B conducted emissions
- Single & multiple outputs
- Operating temperature range from -0 to +70°C
- 3 year warranty
Contents
Cover kits available, mating connector & loom kits available.
Technical Specifications
| Power Supply Applications | ITE & Medical |
|---|---|
| Power Rating (Forced Cooling) | - |
| Input Voltage VAC | 90V AC to 264V AC |
| Output Voltage - Output 1 | 18VDC |
| Output Voltage - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 4 | - |
| Product Range | ECM40 Series |
| No. of Outputs | 1 Output |
|---|---|
| Power Rating (Convection Cooling) | 40W |
| Power Supply Output Type | Fixed |
| Output Current - Output 1 | 2.2A |
| Output Current - Output 2 | - |
| Output Current - Output 3 | - |
| Current, Output 4 | - |
| SVHC | No SVHC (15-Jan-2018) |
Alternatives for ECM40US18
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Vietnam Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .15 |
