Print Page
Available to Order
Manufacturer Standard Lead Time: 27 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.99.940 |
| 10+ | Rs.96.610 |
| 25+ | Rs.93.270 |
| 50+ | Rs.81.280 |
| 100+ | Rs.78.360 |
| 500+ | Rs.76.300 |
| 1000+ | Rs.74.780 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.99.94
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCOMUS
Manufacturer Part NoRI-46A
Order Code2409216
Product RangeRI-46
Technical Datasheet
Product RangeRI-46
Contact ConfigurationSPST-NO
Switch MountingSurface Mount
Contact Current Max500mA
Switching Voltage Max200VDC
Switching Power Max30W
Contact Resistance Max0.09ohm
Operate AT Min15AT
Operate AT Max28AT
SVHCNo SVHC (23-Jan-2024)
Product Overview

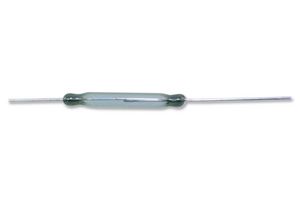

The RI-46 series Micro Dry Reed Switch hermetically sealed in a gas-filled glass envelope. It is single-pole single-throw (SPST) type having normally open contacts and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.
- Can switch main voltage
- Can handle up to 40W load
- Sputtered ruthenium-plated gold contact layers
- Superior glass-to-metal seal and blade alignment
- Excellent life expectancy and reliability
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
Product Range
RI-46
Switch Mounting
Surface Mount
Switching Voltage Max
200VDC
Contact Resistance Max
0.09ohm
Operate AT Max
28AT
Contact Configuration
SPST-NO
Contact Current Max
500mA
Switching Power Max
30W
Operate AT Min
15AT
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000277
