KEEG1538WB-100LB

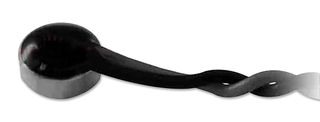

Microphone, Electret Condenser, Omnidirectional, 20 Hz to 20 kHz, 2 VDC to 10 VDC, -42 dB
Image is for illustrative purposes only. Please refer to product description.
ManufacturerKINGSTATE
Manufacturer Part NoKEEG1538WB-100LB
Order Code2215103
Your Part Number
Technical Datasheet
5,697 In Stock
Need more?
5697 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.186.600 |
| 5+ | Rs.156.610 |
| 10+ | Rs.134.400 |
| 20+ | Rs.113.300 |
| 40+ | Rs.106.520 |
| 100+ | Rs.104.600 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.186.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKEEG1538WB-100LB
Order Code2215103
Technical Datasheet
Transducer FunctionMicrophone
DirectivityOmnidirectional
Frequency Response Min20Hz
Frequency Response Max20kHz
Supply Voltage Min2VDC
Supply Voltage Max10VDC
Drain Current Max500µA
Sensitivity (dB)-42dB
Impedance2.2kohm
Output Impedance2.2kohm
Product Range-
Product Overview
The KEEG1538WB-100LB is an omnidirectional Electret Condenser Microphone.
- 58dB Signal to Noise Ratio
- -3dB Sensitivity Reduction
- Wire Type Terminal
- IP67 Dustproof and Waterproof Protection
Applications
Audio
Technical Specifications
Transducer Function
Microphone
Frequency Response Min
20Hz
Supply Voltage Min
2VDC
Drain Current Max
500µA
Impedance
2.2kohm
Product Range
-
Directivity
Omnidirectional
Frequency Response Max
20kHz
Supply Voltage Max
10VDC
Sensitivity (dB)
-42dB
Output Impedance
2.2kohm
Technical Docs (1)
Alternatives for KEEG1538WB-100LB
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001512
