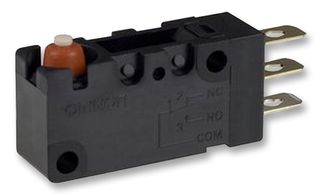

D2VW-5L3-1MS
Microswitch, Snap Action, Simulated Roller Lever, SPDT-1NO / 1NC, Quick Connect, Solder, 5 A
4 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.1,388.700 |
| 5+ | Rs.1,292.760 |
| 10+ | Rs.1,196.810 |
| 20+ | Rs.1,087.680 |
| 50+ | Rs.1,010.250 |
Product Information
Product Overview
The D2VW-5L3-1MS is a single-pole double-throw (SPDT) sealed Snap Action Switch with simulated roller lever and molded lead wires. This high-quality watertight high-precision miniature snap action switch body meets IP67 requirements. The use of epoxy resin assures high sealing capability is ideal for dusty places or where water is sprayed. The V-series internal mechanism assures high precision and long life.
- 100mΩ Maximum contact resistance
- 100MΩ at 500VDC Minimum insulation resistance
- IEC IP67 Protection rating
- 1000VAC 50/60Hz for 1 minute between terminals of the same polarity Dielectric strength
Applications
Industrial
Notes
Prevent the switch from coming into contact with oil and chemicals. Otherwise, damage and deterioration to the switch materials may occur.
Technical Specifications
Snap Action
SPDT-1NO / 1NC
5A
D2VW
120gf
Simulated Roller Lever
Quick Connect, Solder
250VDC
250VAC
No SVHC (17-Dec-2014)
