ASE02008MR-LW150-R
Speaker, 800 Hz to 20 kHz, 8 ohm, 700 mW, 79 dBA, Square, SMD

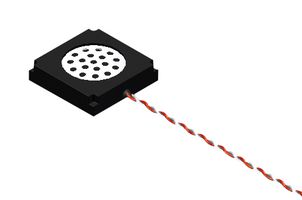

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPUI AUDIO
Manufacturer Part NoASE02008MR-LW150-RCopy
Manufacturer Standard Lead Time21 weeks
Order Code4411401
Your Part Number
80 In Stock
Need more?
80 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.474.680 |
| 5+ | Rs.420.890 |
| 10+ | Rs.367.100 |
| 20+ | Rs.349.660 |
| 40+ | Rs.332.220 |
| 80+ | Rs.274.080 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.474.68
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPUI AUDIO
Manufacturer Part NoASE02008MR-LW150-RCopy
Manufacturer Standard Lead Time21 weeks
Order Code4411401
Technical Datasheet
Driver TypeGeneral Purpose
Impedance8ohm
Power Rating Nom500mW
External Width - Metric20mm
Resonant Frequency1.4kHz
Sound Pressure Level (SPL)79dBA
Speaker ShapeSquare
External Width - Imperial0.78"
Product Dimensions20mm x 20mm x 5mm
Frequency Range800Hz to 20kHz
Frequency Response Min800Hz
Frequency Response Max20kHz
Temperature GradeStandard
IP Rating-
Product Range-
Speaker MountingSMD
Power Rating Max700mW
External Length - Metric20mm
External Depth - Metric5mm
External Length - Imperial0.78"
External Depth - Imperial0.19"
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Driver Type
General Purpose
Power Rating Nom
500mW
Resonant Frequency
1.4kHz
Speaker Shape
Square
Product Dimensions
20mm x 20mm x 5mm
Frequency Response Min
800Hz
Temperature Grade
Standard
Product Range
-
Power Rating Max
700mW
External Depth - Metric
5mm
External Depth - Imperial
0.19"
Impedance
8ohm
External Width - Metric
20mm
Sound Pressure Level (SPL)
79dBA
External Width - Imperial
0.78"
Frequency Range
800Hz to 20kHz
Frequency Response Max
20kHz
IP Rating
-
Speaker Mounting
SMD
External Length - Metric
20mm
External Length - Imperial
0.78"
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85189000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.026
